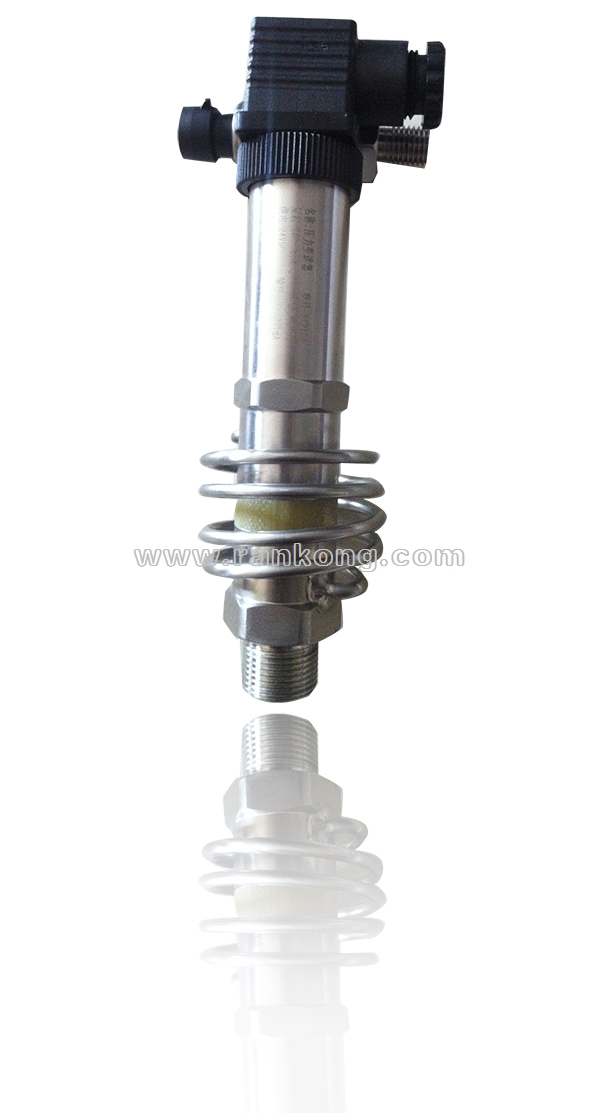

PMR310 High-temperature Pressure

Pressure range: -0.1MPa…0MPa～0.01MPa…160MPa(G)；0MPa～0.025MPa…60MPa(A)
·Output signal: 4～20mADC 2-wire
Medium temp. -20℃～150℃ -20℃～300℃

24-hour national online service:

025-84363968

consult

316L stainless steel isolation diaphragm structure

Imported high temperature resistant chip

Wide range of applicable medium temperature

Strong anti-interference ability and long-term stability

Direct contact for measurement of high temperature medium, improving pressure response frequency

Rich pressure ranges provided, including low, medium and high pressure ranges

Anti-vibration, shock resistant and corrosion resistant

Pressure range
-100KPa, 10KPa, 35KPa, 70KPa, 100KPa, 250KPa, 400KPa, 600KPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa,

RECOMMEND

Hot line：025-84363968

Address：南京市棲霞區(qū)馬群科技園

Email：rankong163@163.com

Consult

南京冉控科技有限公司版權(quán)所有蘇ICP備18060422號-1 Address：Nanjing Qixia Maqun Science Park

Links： | |

Pressure range	-0.1MPa…0～20kPa…100MPa
Overpressure	1.5 times FS or 110MPa (min.value is valid）
Power supply	1.5mADC
Signal	≥70mVDC（0～20kPa，≥50mVDC）
Accuracy	±0.1%FS（min.） ±0.25%FS（typ.） ±0.5%FS（max.）
Long-term stability	±0.3%FS/year
Compensation temp.	0℃～50℃
Medium temp.	-20℃～150℃ -20℃～300℃
Storage temp.	-40℃～100℃
Zero temp. coefficient	±0.02%FS/℃（typ.） ±0.04%FS/℃（max.）
FS temp. coefficient	±0.02%FS/℃（typ.） ±0.04%FS/℃（max.）
Housing	Stainless steel 1Cr18Ni9Ti
Diaphragm	Stainless steel 316L
O-ring	Viton
Cable	Polythene
Response time（10%～90%）	≤1ms
Insulation resistance	100MΩ，100VDC
Production	IP65（cable connection）
